造型

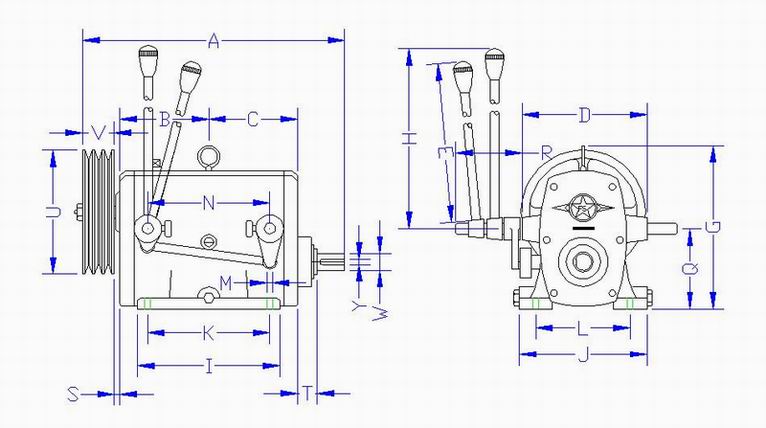

造型 TYPE	使用马力HP Horse power applied	缓冲式变速机规格 Specification for Buffer Variators
造型 TYPE	使用马力HP Horse power applied	A	B	C	D	E	F	G	H	I	J	K	L
FS-803	1~3	495	165	165	193	300	134	230	400	260	205	200	160
FS-805	3~5	555	190	190	220	400	150	327	500	310	240	250	200

造型

TYPE

使用马力HP

Horse power applied

缓冲式变速机规格 Specification for Buffer Variators

M

N

O

P

Q

R

S

T

U

V

W

X

Y

FS-803

1~3

11

207

24

77

158

210

8

50

190Ø

A3

32Ø

55

5/16"

FS-805

3~5

14

246

25

85

180

165

14

67

254Ø

B3

35Ø

58

3/8"

　

　

造型 TYPE	入力轴最高回转数 Turning Rounds, highest for the input axis.	入力轴最低回转数 Turning Rounds, lowest for the input axis.	比例 Proportion									重量 KG
造型 TYPE	入力轴最高回转数 Turning Rounds, highest for the input axis.	入力轴最低回转数 Turning Rounds, lowest for the input axis.	0	1	2	3	4	5	6	7	8	重量 KG
FS-803	850	500	0	0.113	0.204	0.318	0.454	0.5	0.9	1.40	2.00	49
FS-805	750	400	0	0.107	0.18	0.267	0.385	0.5	0.8	1.25	1.80	75

特别说明

FS-415皮带轮按使用速度配制
八段变速前四段缓冲 , 后快慢两段须停车
2段 , 3段 , 6段或其他比数为特殊规格,欢迎订做
最初使用 300 小时洗净内部换新油 , 以后每操作1000小时再换新油一次

SPECIAL ILLUSTRATION

The device of FS-415 belt depend upon the speeds that you need .
The buffer variator os prepare for the first 4 step speed of 8 speeds . For the last two step speed , the motor must be switched off.
For the special devices of 2 step speed , 3 step speed, 6 step speed and others , you are welcome if you need any service .
Clean inside of this machine after the first 300 hours use of it . Later change new machine oil very 1000 hours .
