造型

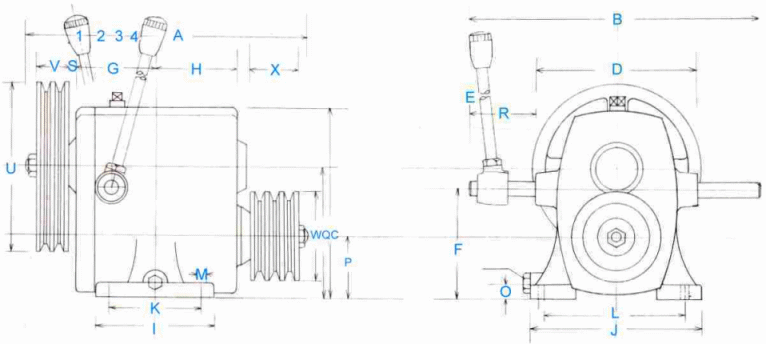

造型 TYPE	使用马力HP Horse power applied	缓冲式变速机规格 Specification for Buffer Variators
造型 TYPE	使用马力HP Horse power applied	A	B	C	D	E	F	G	H	I	J	K	L
FS-401	¼~½	260	210	150	110	220	82	75	75	102	125	80	106
FS-402	½~1½	300	300	200	160	360	116	85	85	122	182	95	150
FS-403	1~3	360	300	227	190	360	130	107	107	155	200	120	170
FS-405	3~5	420	350	250	200	360	145	120	120	170	220	135	190
FS-410	7½~10	495	400	285	240	460	164	137	137	200	265	155	210
FS-415	15~20	580	458	335	275	460	201	152	152	225	310	175	260

造型 TYPE	使用马力HP Horse power applied	缓冲式变速机规格 Specification for Buffer Variators
造型 TYPE	使用马力HP Horse power applied	M	N	O	P	Q	R	S	T	U	V	W	X
FS-401	¼~½	10Ø	10Ø	10	47	94	50	11	11	15Ø	30	19Ø	40
FS-402	½~1½	11Ø	11Ø	16	66	138	70	8	16	180Ø	A2	100Ø	A3
FS-403	1~3	11Ø	11Ø	20	77	158	55	8	14	190Ø	A3	127Ø	B3
FS-405	3~5	14Ø	14Ø	20	85	175	75	12	12	254Ø	B3	127Ø	B4
FS-410	7½~10	19	19	20	94	202	80	16	16	355Ø	B3	150Ø	B5
FS-415	15~20	22	35	25	115	241	90	30	30

　

　

FS-402					FS-403
变速数 Speed change number	变速比 Rate of variation	出力轴回转数参考表 Number of Turning Rounds for the Output Axis.			变速数 Speed change number	变速比 Rate of variation	出力轴回转数参考表 Number of Turning Rounds for the Output Axis.
变速数 Speed change number	变速比 Rate of variation	入力轴回转数最高850转 850 Turning Rounds,highest for the input axis.	入力轴回转数最低500转 500 Turning Rounds,lowest for the input axis.		变速数 Speed change number	变速比 Rate of variation	入力轴回转数最高850转 850 Turning Rounds,highest for the input axis.	入力轴回转数最低500转 500 Turning Rounds,lowest for the input axis.
0	0	0	0		0	0
1	0.5	425 R.P.M	250 R.P.M		1	0.5	425 R.P.M	250 R.P.M
2	0.85	680 R.P.M	400 R.P.M		2	0.9	765 R.P.M	450 R.P.M
3	1.25	1,062 R.P.M	625 R.P.M		3	1.4	1,190 R.P.M	700 R.P.M
4	2.0	1,700 R.P.M	1,000 R.P.M		4	2.0	1,700 R.P.M	1,000 R.P.M
备注 Note	使用马达½ HP~1½ HP变速机重量21K use motor ½HP~ 1½HP speed change machine weight 21K				备注 Note	使用马达1 HP~3 HP变速机重量31K use motor 1HP~ 3HP speed change machine weight 31K

　

FS-405					FS-410,415
变速数 Speed change number	变速比 Rate of variation	出力轴回转数参考表 Number of Turning Rounds for the Output Axis.			变速数 Speed change number	变速比 Rate of variation	出力轴回转数参考表 Number of Turning Rounds for the Output Axis.
变速数 Speed change number	变速比 Rate of variation	入力轴回转数最高750转 750 Turning Rounds, highest for the input axis.	入力轴回转数最低500转 500 Turning Rounds, lowest for the input axis.		变速数 Speed change number	变速比 Rate of variation	入力轴回转数最高750转 750 Turning Rounds, highest for the input axis.	入力轴回转数最低500转 500 Turning Rounds, lowest for the input axis.
0	0	0	0		0	0
1	0.5	375 R.P.M	200 R.P.M		1	0.5	375 R.P.M	150 R.P.M
2	0.85	637 R.P.M	340 R.P.M		2	0.8	600 R.P.M	240 R.P.M
3	1.25	937 R.P.M	500 R.P.M		3	1.2	900 R.P.M	360 R.P.M
4	1.8	1,350 R.P.M	720 R.P.M		4	1.6	1,200 R.P.M	480 R.P.M
备注 Note	使用马达3HP~5 HP变速机重量43K use motor 3HP~ 5HP speed change machine weight 21K				备注 Note	使用马达7½ HP~10HP变速机重量72.5K use motor 7½HP~ 10HP speed change machine weight 72.5K

特别说明

FS-415皮带轮按使用速度配制
八段变速前四段缓冲 , 后快慢两段须停车
2段 , 3段 , 6段或其他比数为特殊规格,欢迎订做
最初使用 300 小时洗净内部换新油 , 以后每操作1000小时再换新油一次

SPECIAL ILLUSTRATION

The device of FS-415 belt depend upon the speeds that you need .
The buffer variator os prepare for the first 4 step speed of 8 speeds . For the last two step speed , the motor must be switched off.
For the special devices of 2 step speed , 3 step speed, 6 step speed and others , you are welcome if you need any service .
Clean inside of this machine after the first 300 hours use of it . Later change new machine oil very 1000 hours .
